Air tool Hose

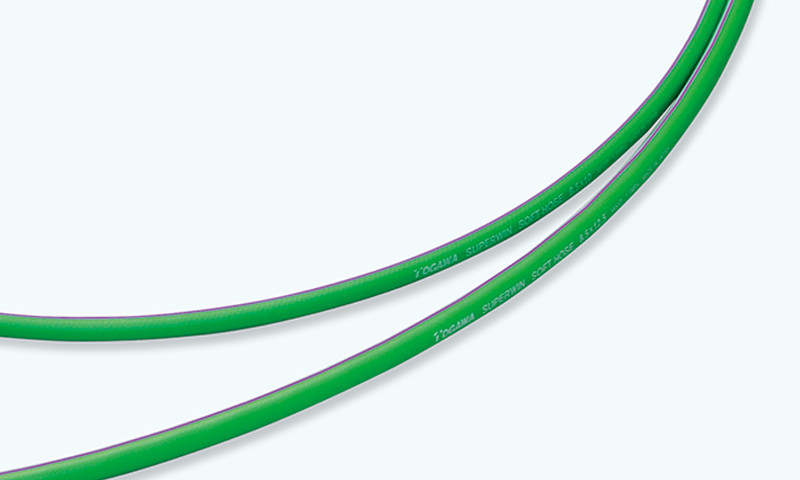

Super Win Soft Hose
With further softness and smoothness, this hose is free from winding or hopping.
- Material
- Specialized elastomer product
- Usage
- For air-paint, air-spray, and in-factory air tools
- Features
- With the increased smoothness, this hose is easy to carry and improves the workability.
Superior in water resistance, elasticity, and airtightness, this hose is appropriate for air tool piping. - Fluids
-
Air
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| SWH-6510 | 6.5 | 10 | 100 | 1.5 | 20 | 5.8 |
| SWH-8512 | 8.5 | 12.5 | 100 | 1.5 | 40 | 8.3 |
| SWH-1116 | 11.0 | 16.0 | 100 | 1.5 | 45 | 6.7 |
Performance evaluation
| Descriptions | Evaluation | Descriptions | Evaluation |
| Lightness | Smoothness | ||
| Softness | Spattering resistance |
* All the evaluations were made in-house * Use our specified brackets
