Air tool Hose

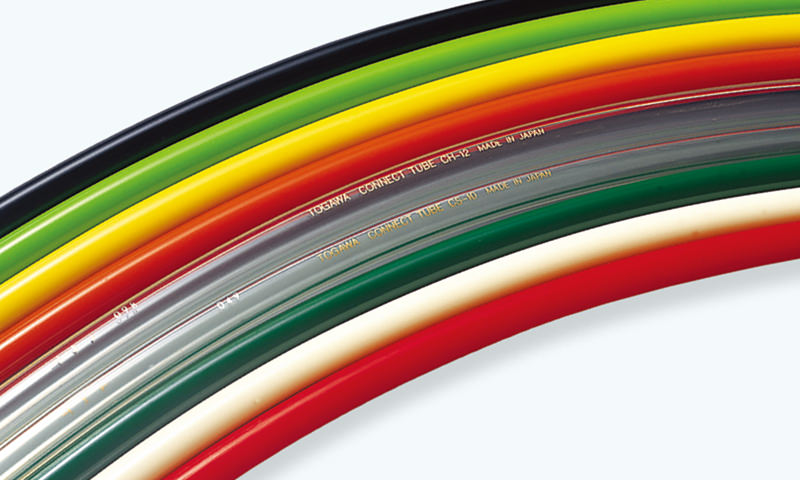

Connect Tube
- Material
- Polyurethane product
- Usage
- A tube for various pneumatic machines
- Features
- Superior in oil resistance, this tube is appropriate for in-factory air piping.
- Fluids
-
Air
Specifications:Working temperature limit: Between -40℃ and + 80℃
| Nominal designation | Outer diameter(mm) | Inner diameter(mm) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size(m) | Regular size weight(kg) |
| CH-4 BK | 4.0 | 2.5 | 0.7 | 10 | 100 | 0.9 |
| CH-6 BK | 6.0 | 4.0 | 0.7 | 15 | 100 | 1.9 |
| CH-8 BK | 8.0 | 5.0 | 0.7 | 24 | 100 | 3.7 |
| CH-10 BK | 10.0 | 6.5 | 0.7 | 30 | 50 | 2.7 |
| CH-12 BK | 12.0 | 8.0 | 0.7 | 36 | 50 | 3.75 |
