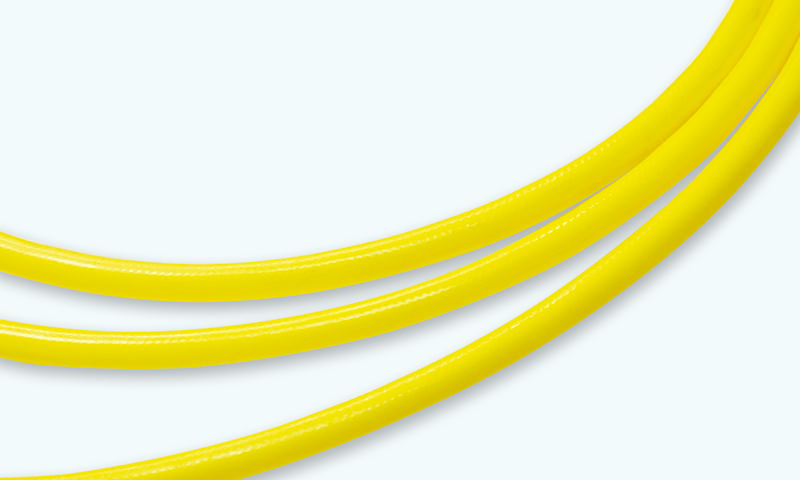

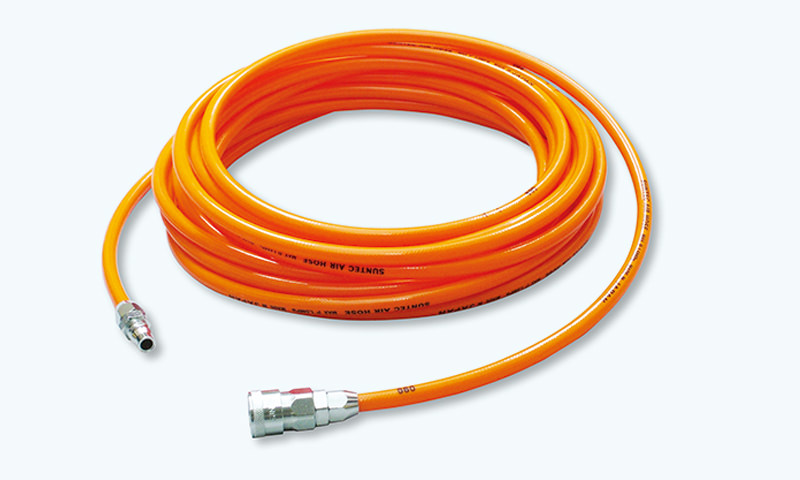

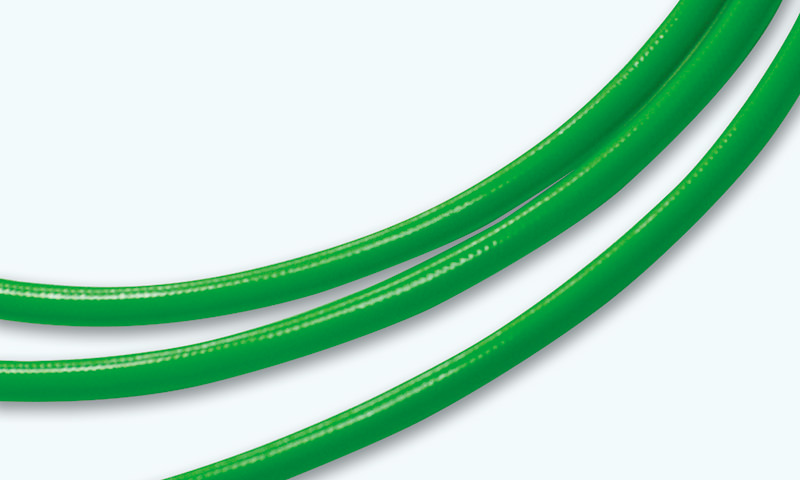

A convenient and affordable air hose combined with a pair of couplers. The hose is available in a variety of different colors.
Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Brackets used | Delivery unit | Color |
STC-7010 | 7.0 | 10.0 | 10 | 1.5 | 40 | Two-touch coupler | 10 | Orange yellow green |
STC-7020 | 7.0 | 10.0 | 20 | 1.5 | 40 | Two-touch coupler | 10 | Orange yellow green |
STC-7030 | 7.0 | 10.0 | 30 | 1.5 | 40 | Two-touch coupler | 10 | Orange yellow green |
STC-7100 | 7.0 | 10.0 | 100 | 1.5 | 40 | ー | ー | Orange |
