Air tool Hose

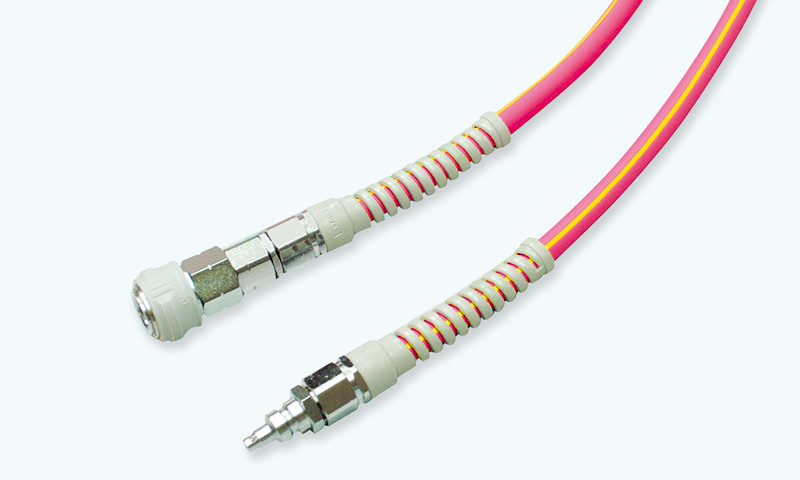

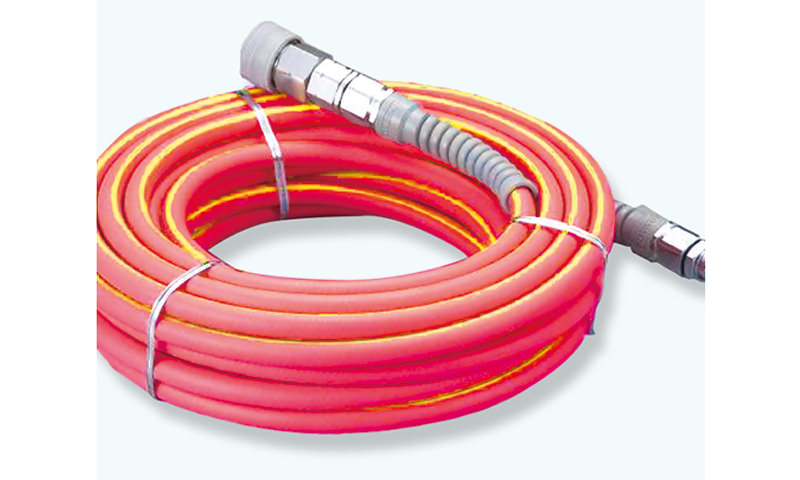

Quattro Air Hose
The high pressure hose of super flexibility and smoothness which can support up to 4MPa maximum operating pressure.
- Material
- Specialized elastomer product
- Usage
- For air tools (pegger machines and air-tuckers) and in-factory air tools.
- Features
- A high pressure hose that supports up to 4MPa maximum operating pressure and significantly shorten the work hours. With the new proprietary special material, this hose cannot get stuck or kinked easily.
- Fluids
-
Air
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Brackets used | Delivery unit |
| QHC-6010 | 6.0 | 10.0 | 10 | 4.0 | 18 | One-touch aluminum coupler | 10 |
| QHC-6020 | 6.0 | 10.0 | 20 | 4.0 | 18 | One-touch aluminum coupler | 10 |
| QHC-6030 | 6.0 | 10.0 | 30 | 4.0 | 18 | One-touch aluminum coupler | 10 |
Performance evaluation
| Descriptions | Evaluation | Descriptions | Evaluation |
| Lightness | Smoothness | ||
| Softness | Spattering resistance |
* All the evaluations were made in-house * Use our specified brackets
