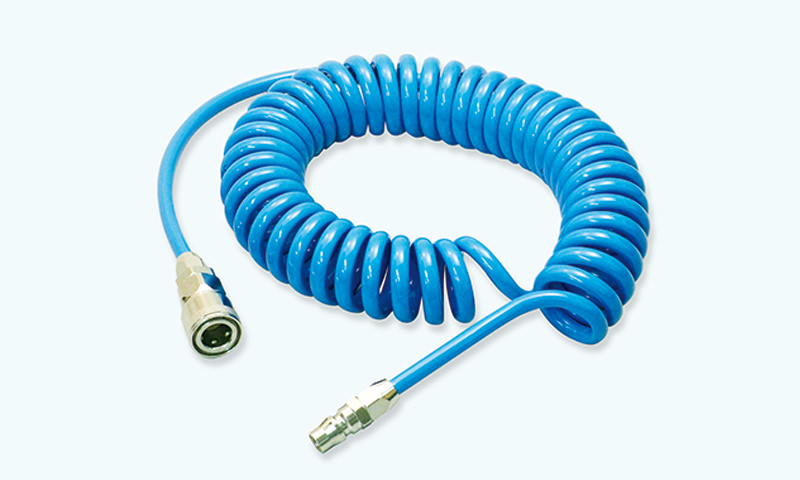

Sun Tech Coil

Sun Tech Coil

Superior in robustness in addition to high flexibility, elasticity, and wear resistance.

Material
Polyurethane product
Usage
For air-paint, air-spray, and in-factory air tools
Features
Because of a coil form, this product will cover broader working space with fewer kinks and wears.

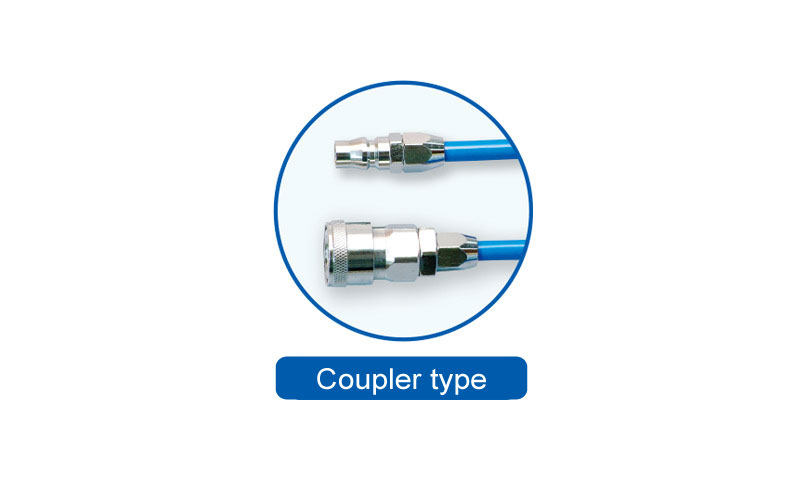

As the edges are straightened, no hoses are necessary, and the couplers will improve the workability.
Fluids

Air

* This product is made in China.

Specifications:Working temperature limit: Between -40℃ and + 80℃

Nominal designation Inner diameter(mm) Outer diameter(mm) Working space(m) Brackets of both ends Maximum working pressure MPa at 20℃ Delivery unit
SCH-5080-3 5.0 8.0 2.0 Two-touch coupler 0.7 10
SCH-5080-5 5.0 8.0 4.0 Two-touch coupler 0.7 10

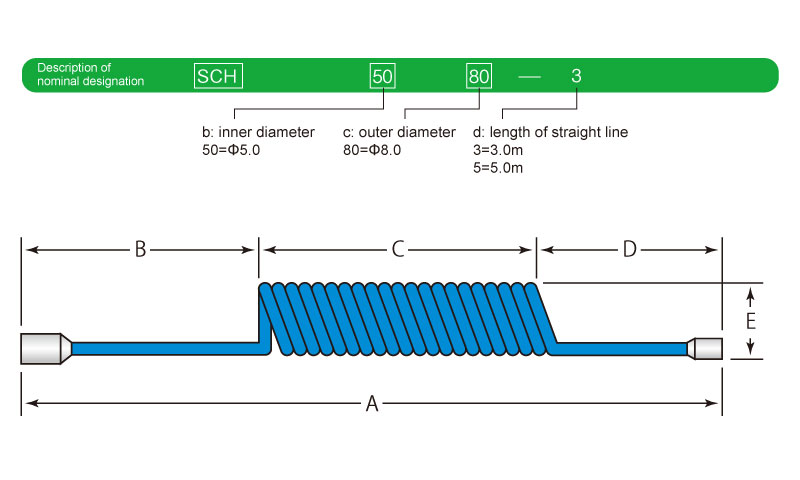

Nominal designation A (mm) B(mm) C(mm) D(mm) E(mm)
SCH-5080-3 780 500 180 100 42.0
SCH-5080-5 1.000 500 400 100 42.0
