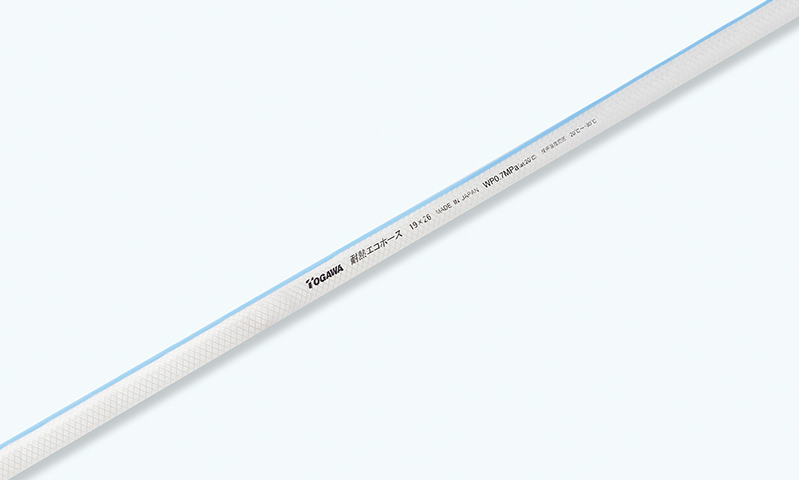

Heat-Resistant Eco Hose
A non-PVC hose which can be used for fatty foods. It is also superior in chemical resistance.
- Material
- Polyolefin product
- Usage
- Foods
- Features
- A non-PVC hose which can be used for fatty foods. It is also superior in chemical resistance.
- Fluids
-
Water
Various foods
Chemical
Notes on the operating temperature and maximum working pressure
If you use this product out of the normal temperatures range, refer to the maximum working pressure fluctuations described in the graph of this pressure resistance data, and use the hose in the condition below the specified value.
In addition, if you use the hose in more than the maximum working pressure (in accordance with the operating temperature), please take care because it may cause a danger of bursting or significantly shorten the service time of the hose.
Specifications:Working temperature limit: Between -20℃ and + 80℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| TEH-12 | 12.0 | 18.0 | 60 | 1.0 | 48 | 7.8 |
| TEH-15 | 15.0 | 22.0 | 60 | 0.8 | 60 | 11.4 |
| TEH-19 | 19.0 | 26.0 | 50 | 0.7 | 76 | 11.5 |
| TEH-25 | 25.0 | 33.0 | 40 | 0.6 | 100 | 13.6 |
| TEH-32 | 32.0 | 41.0 | 40 | 0.5 | 128 | 19.2 |
| TEH-38 | 38.0 | 48.0 | 40 | 0.4 | 152 | 24.8 |
| TEH-50 | 50.0 | 62.0 | 40 | 0.3 | 200 | 38.8 |
* The sizes or colors other than listed above are available by a lot production. The burst pressure is estimated under the condition of 20℃
Important notice on food hoses
Odor and taste
Odor and/or taste may be generated in some rare cases by the reaction between the hose and fluids (water, foods, or cleaning agents).
Check the odor and taste before and after using the hose, as there may be great difference between persons.
