Food Hose

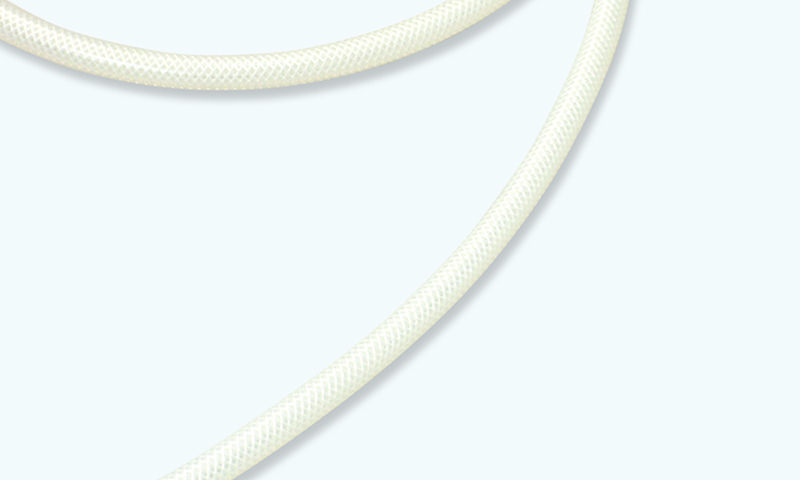

Silicone Hose
This hose can be used in a wide range of temperature between -30℃ and 150℃.
- Material
- Silicon product
- Usage
- For soft drinks, and high-and-low temperature equipment such as air-conditioners, transducers, and office automation devices.
- Features
- It can be used in a wide range of temperature between -30℃ and +150℃.
- Fluids
-
Water
Various foods
Chemical
Specifications:Working temperature limit: Between -30℃ and + 150℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) | Derivery unit(roll) |
| SH-5 | 4.8 | 10.6 | 10 | 1.0 | 70 | 0.8 | 5 |
| SH-6 | 6.3 | 12.3 | 10 | 1.0 | 80 | 1.1 | 5 |
| SH-8 | 7.9 | 14.3 | 10 | 1.0 | 90 | 1.3 | 4 |
| SH-9 | 9.5 | 16.5 | 10 | 1.0 | 100 | 1.7 | 3 |
| SH-12 | 12.7 | 20.1 | 10 | 0.5 | 130 | 2.3 | 2 |
| SH-15 | 15.9 | 24.1 | 10 | 0.5 | 150 | 3.1 | 1 |
| SH-19 | 19.0 | 28.2 | 10 | 0.5 | 180 | 4.1 | 1 |
| SH-25 | 25.4 | 35.6 | 10 | 0.5 | 300 | 5.9 | 1 |
| SH-32 | 32.0 | 43.8 | 10 | 0.5 | 360 | 8.4 | 1 |
| SH-38 | 38.1 | 50.7 | 10 | 0.5 | 430 | 10.5 | 1 |
| SH-50 | 50.8 | 65.0 | 6 | 0.3 | 550 | 9.3 | 1 |
* The sizes or colors other than listed above are available by a lot production. The burst pressure is estimated under the condition of 20℃
Important notice on food hoses
Odor and taste
Odor and/or taste may be generated in some rare cases by the reaction between the hose and fluids (water, foods, or cleaning agents).
Check the odor and taste before and after using the hose, as there may be great difference between persons.
