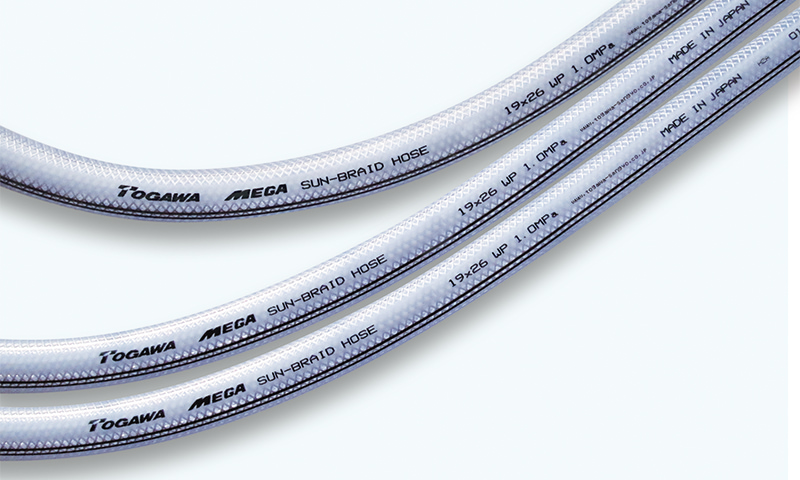

MEGA Sun Braid Hose
Renewed design with white lines. Rubber-like touch of highly elastic resin. The fluids can be visually checked easily.
- Material
- Flexible PVC product
- Usage
- For water supply of machines and factories, air piping, and water supply for engineering, and construction sites.
- Features
- Highly elastic resin is used. The fluids can be visually checked easily.
- Fluids
-
Water
OilNote: Cannot be used for fuel oil
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| SB-4 | 4.0 | 9.0 | 100 | 1.5 | 16 | 7 |
| SB-6 | 6.0 | 11.0 | 100 | 1.5 | 24 | 9 |
| SB-8 | 8.0 | 13.5 | 100 | 1.4 | 32 | 12 |
| SB-9 | 9.0 | 15.0 | 100 | 1.4 | 36 | 15 |
| SB-10 | 10.0 | 16.0 | 100 | 1.1 | 40 | 16 |
| SB-12 | 12.0 | 18.0 | 100 | 1.0 | 48 | 18 |
| SB-15 | 15.0 | 22.0 | 100 | 1.0 | 60 | 26 |
| SB-19 | 19.0 | 26.0 | 50 | 1.0 | 76 | 16 |
| SB-22 | 22.0 | 29.0 | 50 | 1.0 | 88 | 18 |
| SB-25 | 25.0 | 33.0 | 50 | 1.0 | 100 | 23 |
| SB-32 | 32.0 | 41.0 | 50 | 0.7 | 128 | 33 |
| SB-38 | 38.0 | 48.0 | 50 | 0.6 | 152 | 43 |
| SB-50 | 50.0 | 62.0 | 40 | 0.6 | 200 | 55 |
| SB-63 | 63.0 | 80.0 | 20 | 0.3 | 252 | 52 |
| SB-75 | 75.0 | 92.0 | 20 | 0.3 | 300 | 60 |
| SB-90 | 90.0 | 108.0 | 20 | 0.3 | 450 | 73.8 |
| SB-100 | 100.0 | 118.0 | 20 | 0.3 | 500 | 77.8 |
* The white lines are available only for the products in which inner diameter is between 12 and 75, and are not applied for the products in which inner diameter is between 6 and 10, 90 and 100.
