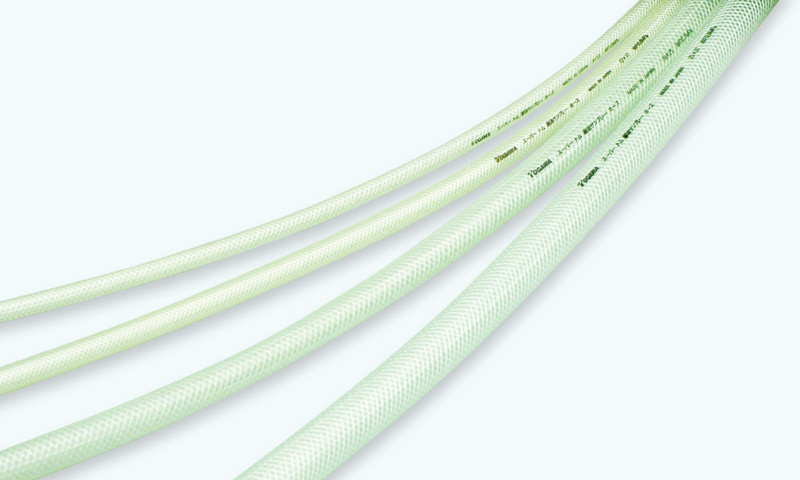

Super Tom Oil resistance Sun Braid Hose

Super Tom Oil resistance Sun Braid Hose

Superior in oil resistance of the specialized resin used. Use this hose for color coding with the MEGA Sun Braid Hose.

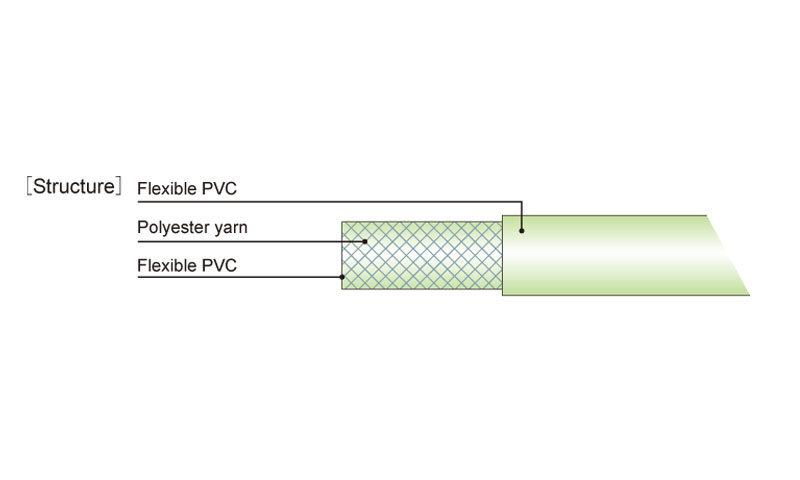

Material
Flexible PVC product
Usage
For water supply of machines and factories, air piping, and water supply for engineering, and construction sites.
Features
Superior in oil resistance, which is appropriate for lubricating oil piping. Can be used for color coding with the MEGA Sun Braid Hose.
Fluids

Water

Oil

Note: Cannot be used for fuel oil

Specifications:Working temperature limit: Between -5℃ and + 60℃

Nominal designation Inner diameter(mm) Outer diameter(mm) Regular size(m) Maximum working pressure MPa at 20℃ Minimum bending radius(mm) Regular size weight(kg)
TB-6 6.0 10.5 100 1.1 24 8
TB-8 8.0 13.0 100 1.1 32 11
TB-9.5 9.5 15.0 100 1.1 38 15
TB-12 12.0 17.0 100 1.0 48 16
TB-15 15.0 21.0 50 0.8 60 11.5
TB-19 19.0 25.0 50 0.7 76 14.5
TB-25 25.0 32.0 50 0.6 100 22
TB-32 32.0 39.5 50 0.5 128 29
TB-38 38.0 46.5 50 0.4 152 38.5
TB-50 50.0 60.0 40 0.3 200 47
