Industrial Hose

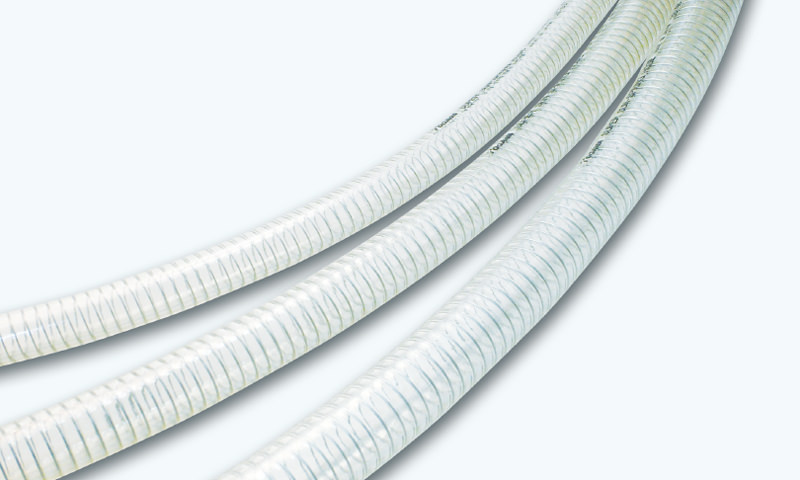

Super Sun Spring Hose

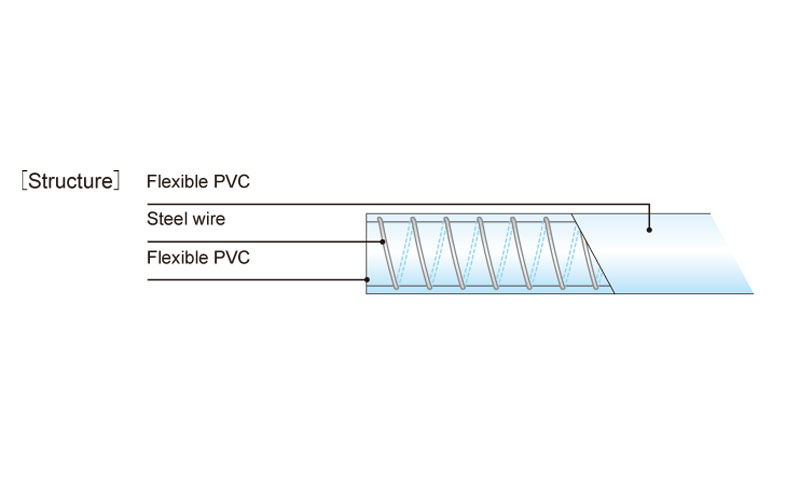

With hard steel wires put inside, this hose withstands to decompression, which is appropriate for vacuuming applications. Superior in transparency, this hose is appropriate for piping of operating oil.
- Material
- Flexible PVC product
- Usage
- For water supply of machines and factories, air piping, and water supply for engineering, and construction sites.
- Features
- With steel wires put inside, this hose can be used as a ground wire for conveying powders etc.
- Fluids
-
Water
Oil
PowdersNote: Cannot be used for fuel oil
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| SP-6 | 6.0 | 11.0 | 100 | 0.9 | 30 | 10 |
| SP-8 | 8.0 | 13.5 | 100 | 0.9 | 40 | 14 |
| SP-9 | 9.0 | 15.0 | 100 | 0.8 | 45 | 16 |
| SP-12 | 12.0 | 18.0 | 100 | 0.7 | 60 | 23 |
| SP-15 | 15.0 | 22.0 | 100 | 0.6 | 75 | 32 |
| SP-19 | 19.0 | 26.0 | 50 | 0.5 | 95 | 22 |
| SP-25 | 25.0 | 33.0 | 50 | 0.5 | 125 | 27 |
| SP-32 | 32.0 | 41.0 | 40 | 0.4 | 160 | 31 |
| SP-38 | 38.0 | 48.0 | 40 | 0.4 | 190 | 39 |
| SP-50 | 50.0 | 62.0 | 40 | 0.3 | 250 | 59 |
| SP-63 | 63.0 | 80.0 | 20 | 0.3 | 315 | 54 |
| SP-75 | 75.0 | 92.0 | 20 | 0.3 | 375 | 63 |
| SP-90 | 90.0 | 108.0 | 20 | 0.3 | 450 | 76.2 |
| SP-100 | 100.0 | 118.0 | 20 | 0.3 | 500 | 84 |
