Industrial Hose

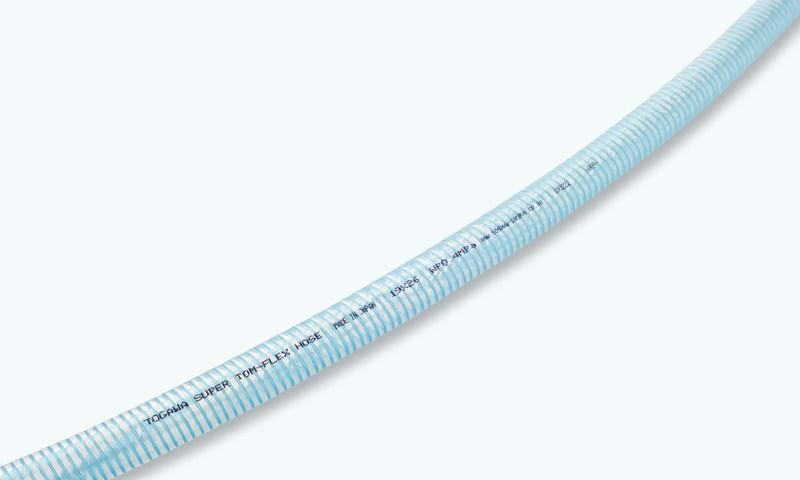

Super Tom Flex Hose
Both inner and outer surface are rich in smoothness. Excellent oil resistance.
- Material
- Flexible PVC product
- Usage
- For working machine, printing machine, molding machine, piping of plant (Vacuum Hoses)
- Features
- Both inner and outer surface are rich in smoothness. Excellent oil resistance.
- Fluids
-
Water
OilNote: Cannot be used for fuel oil
Specifications: Working temperature limit: TP-9-TP19 Between-5℃ and +70℃、TP-25 Between -5℃ and +60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| TP-9 | 9.0 | 15.0 | 40 | 0.8 | 36 | 5.6 |
| TP-12 | 12.0 | 18.0 | 60 | 0.5 | 48 | 10.4 |
| TP-15 | 15.0 | 22.0 | 60 | 0.5 | 60 | 15 |
| TP-19 | 19.0 | 26.0 | 50 | 0.4 | 76 | 15.2 |
| TP-25 | 25.4 | 33.0 | 20 | 0.4 | 100 | 9 |
