Industrial Hose

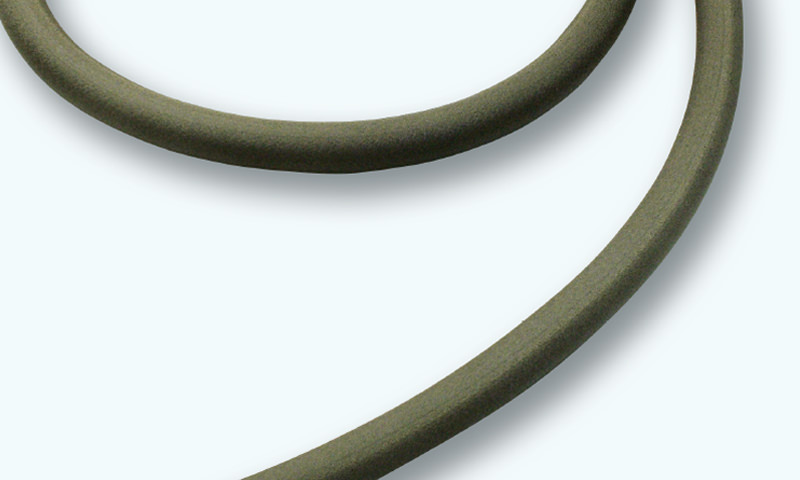

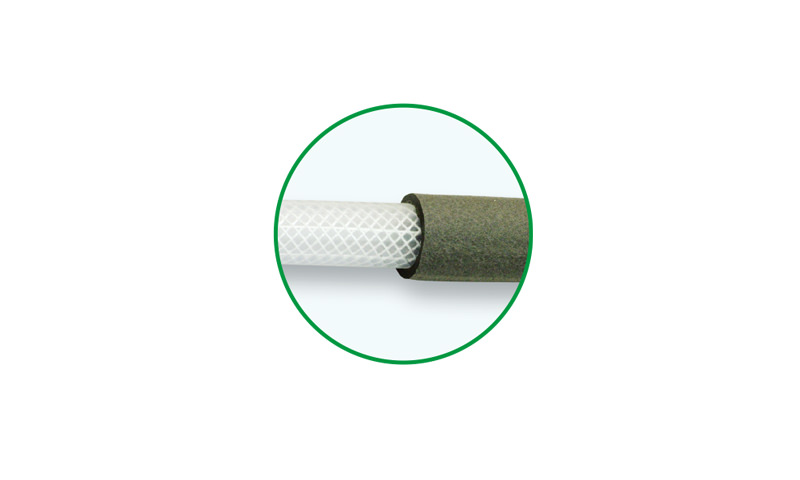

Foam Sun Braid Hose
A hose for cooling water used for printing or molding machines. The foamed materials keep away waterdrops from the hose surface.

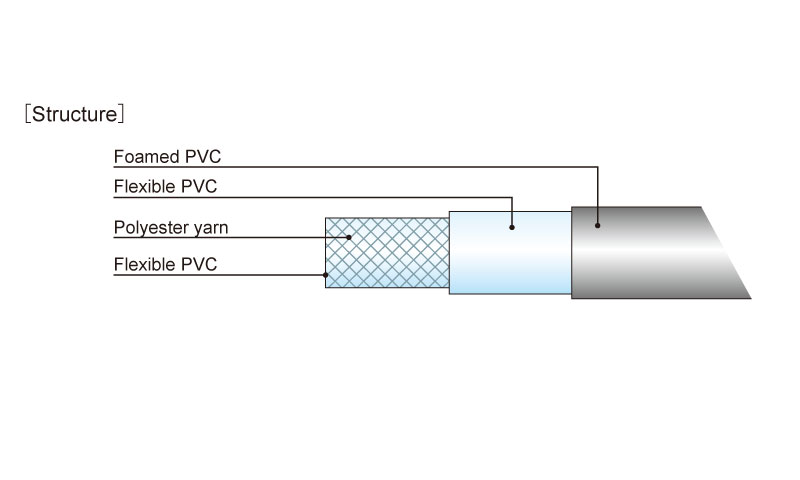

- Material
- Flexible PVC product
- Usage
- For the cooling water used for printing or molding machine (for condensation prevention).
- Features
- The foamed materials keep away waterdrops from the hose surface.
- Fluids
-
Water
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| FB-12 | 12.0 | 24.0 | 50 | 1.0 | 48 | 14 |
| FB-15 | 15.0 | 29.0 | 50 | 0.8 | 60 | 20 |
| FB-19 | 19.0 | 32.0 | 50 | 0.7 | 76 | 23 |
