Industrial Hose

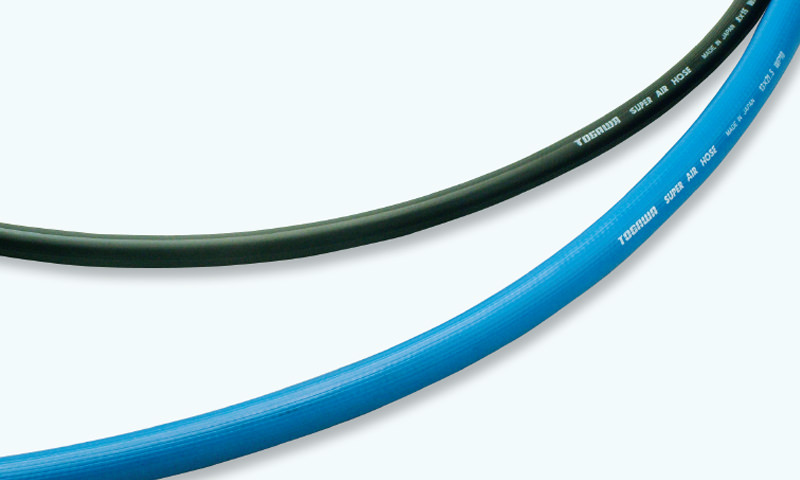

Super Air Hose
Lighter than rubber hoses and superior in workability. Withstanding to direct sunlight and blocking cracks.

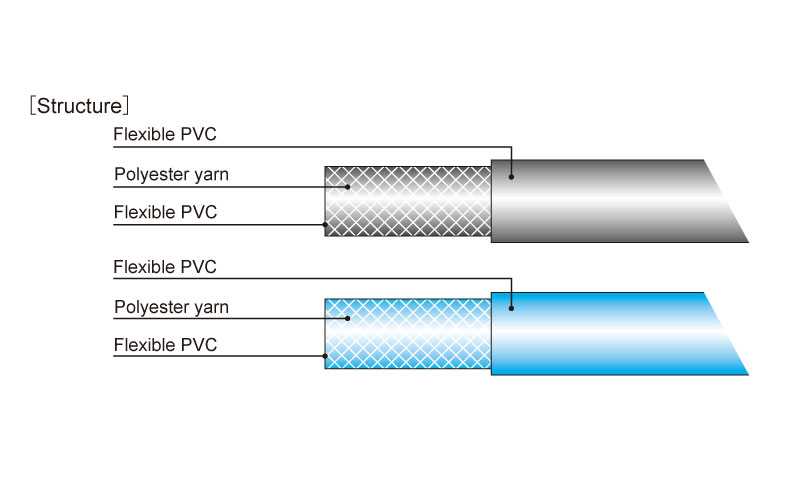

- Material
- Flexible PVC product
- Usage
- For compressors, car maintenance, paint and body works, quarrying etc.
- Features
- Lighter than rubber hoses and superior in workability.
- Fluids
-
Air
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) | Lines |
| SA-6 | 6.5 | 13.0 | 100 | 1.0 | 32.5 | 12 | Black ― |
| SA-7 | 7.0 | 13.5 | 100 | 1.0 | 35 | 12.5 | Black ― |
| SA-8 | 8.0 | 15.0 | 100 | 1.0 | 40 | 15 | Black Blue |
| SA-9 | 9.5 | 16.5 | 100 | 1.0 | 47.5 | 17 | Black Blue |
| SA-12 | 13.0 | 21.5 | 100 | 1.0 | 65 | 28 | Black Blue |
| SA-19 | 19.0 | 27.5 | 100 | 1.0 | 95 | 39 | ― Blue |
| SA-25 | 25.0 | 34.5 | 100 | 1.0 | 125 | 55 | ― Blue |
