Industrial Hose

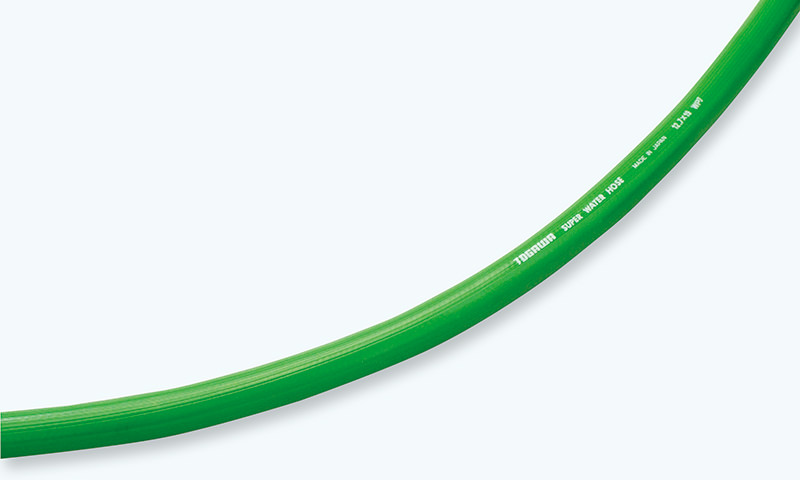

Super Water Hose
Appropriate for washing and sprinkling water on vessels, gas stations, factories, farmlands, golf courses etc.

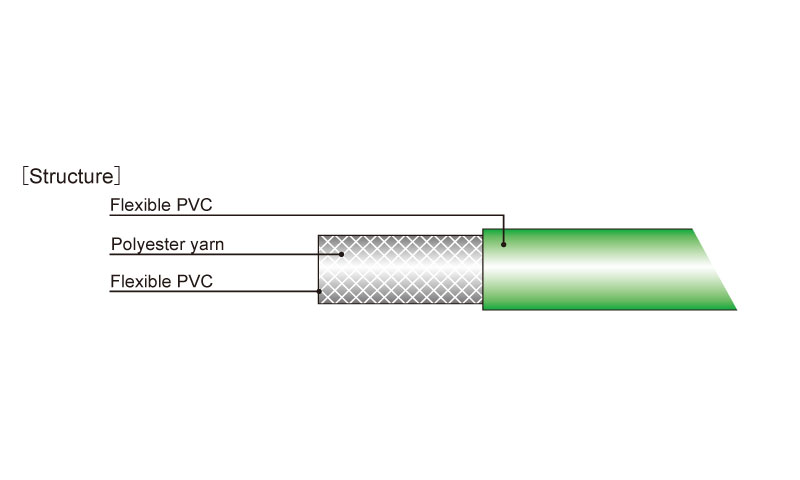

- Material
- Flexible PVC product
- Usage
- Washing and sprinkling water on vessels, factories, farmlands, golf courses, engineering sites, etc.
- Features
- Lighter than rubber hoses and superior in workability.
- Fluids
-
Water
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) | Lines |
| SW-12 | 12.7 | 19.0 | 100 | 0.7 | 63.5 | 19.5 | Green |
| SW-15 | 15.0 | 22.5 | 100 | 0.7 | 75 | 25.5 | Green |
| SW-19 | 19.0 | 27.0 | 100 | 0.7 | 95 | 38 | Green |
| SW-25 | 25.0 | 33.5 | 100 | 0.7 | 125 | 48 | Green |
| SW-32 | 32.0 | 43.0 | 60 | 0.5 | 160 | 48 | Green |
| SW-38 | 38.0 | 50.0 | 60 | 0.5 | 190 | 61.2 | Green |
