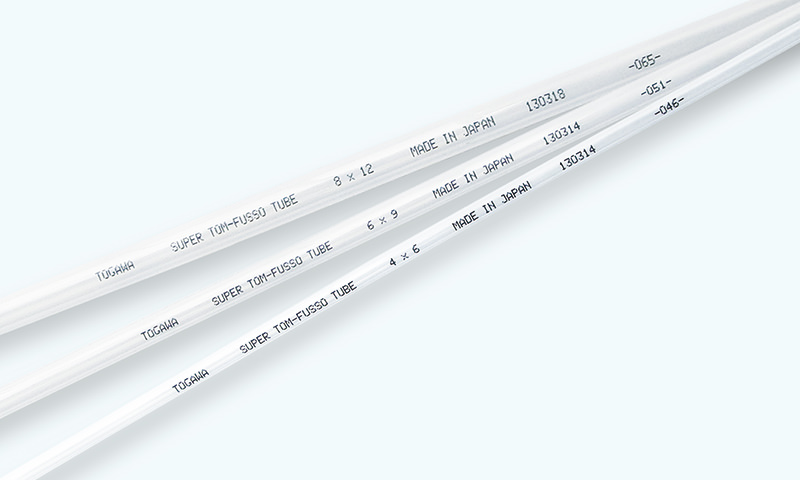

Super Tom Fusso Tube

Super Tom Fusso Tube

The super soft fusso tube with the excellent non-adhesive, low leachability and chemical resistance.

Material

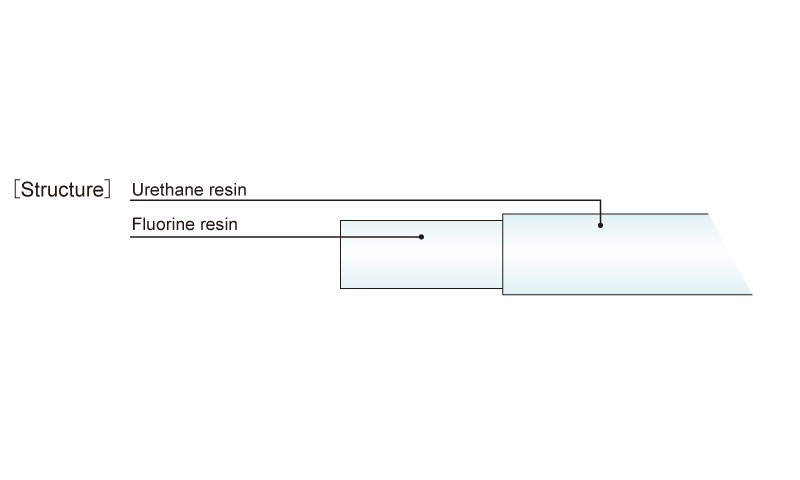

Inner fluorine resin product
Usage
For piping of paints, solvents, chemicals, drinking water and foods
Features
Excellent solvent and chemical resistance and low leachability.
Fluids

Paints

Solvents

Chemical

Various foods

【Features】
●A multipurpose tube with excellent chemical resistance and low permeability against the organic solvent. Also has high transparency and flexibility.

Specifications:Working temperature limit: Between -40℃ and + 80℃

Nominal designation Inner diameter(mm) Outer diameter(mm) Regular size(m) Maximum working pressure MPa at 20℃ Minimum bending radius(mm) Weight(kg/m)
FST-4 4.0 6.0 20・100 0.9 17 0.019
FST-6 6.0 9.0 20・100 0.7 26 0.041
FST-8 8.0 12.0 20・100 0.7 46 0.072
