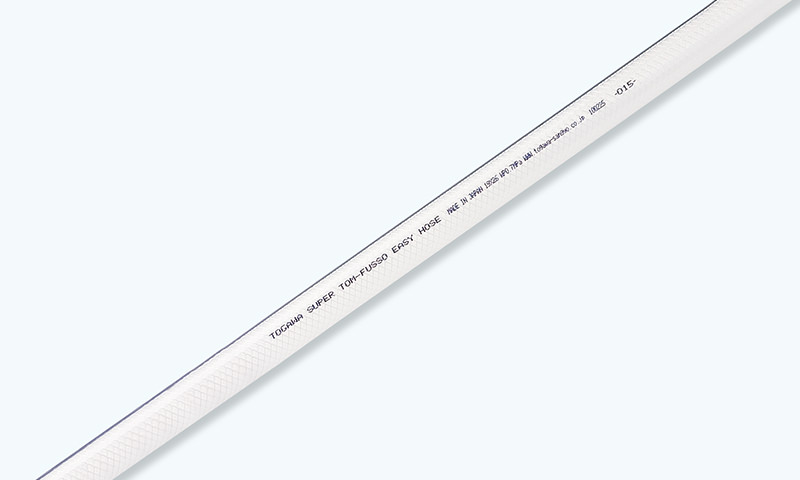

Super Tom Fusso-easy Hose
The super soft fusso hose with a conductive resin line.

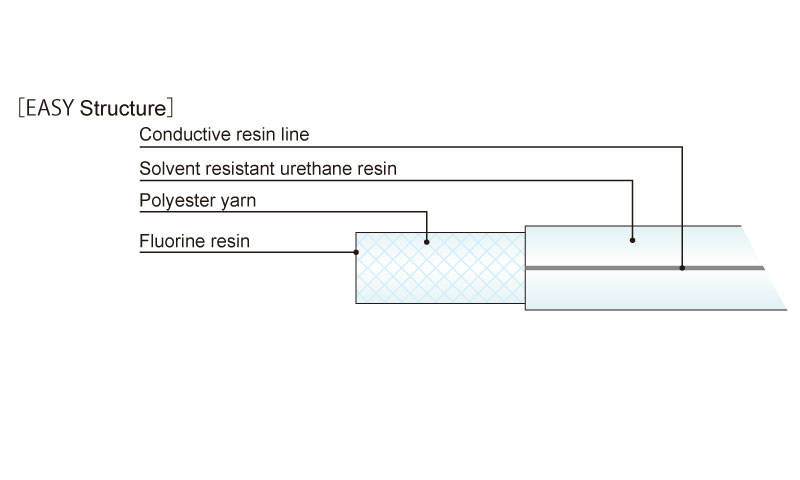

- Material
- Inner fluorine resin product
- Usage
- For piping of paints, solvents, chemicals, drinking water and foods.
- Features
- Excellent solvent and chemical resistance and low leachability.
- Fluids
-
Paints
Solvents
Chemical
Various foods
【Features】
A versatile chemical hose is now available!
●As a conductive sleeve is applied around the outer layer, the grounding can
be completed just by tightening the metallic joint (when the resistance value
is “9× 106 Ω ” or less, and the whole length is 15m or less)
Specifications:Working temperature limit: Between -20℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| FE-9 | 9.0 | 15.0 | 20 | 1.1 | 45 | 2.8 |
| FE-12 | 12.0 | 18.0 | 20 | 1.0 | 60 | 3.5 |
| FE-15 | 15.0 | 22.0 | 20 | 0.8 | 75 | 5.1 |
| FE-19 | 19.0 | 26.0 | 20 | 0.7 | 95 | 6.2 |
| FE-25 | 25.0 | 33.0 | 20 | 0.6 | 125 | 9 |
