List of painting hoses

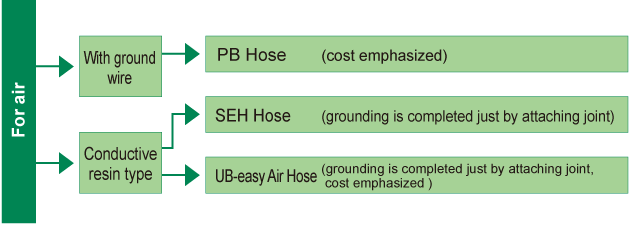

Air Hose
To be recommended use Electric Conducted Air hoses for both of the Air Spray and Electric Static Spray Gun.
- Conductive Air Hose(SEH)
- UB-easy
Actual workingpressure (MPa) 0.5〜0.6
The table slides sideways

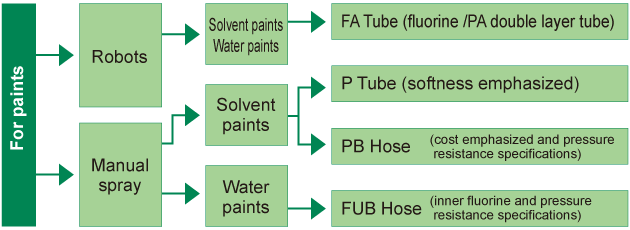

| Paint Hose | ||||
|---|---|---|---|---|
| Paint Type | Typical Spray Gun | Actual working pressure(MPa) | Tube & Hose | |
| Robot Auto machine | Under Body Coat | Air Less Gun | 15～25 | Airless Hose |
| Stone Guard Coat | Air-Airless Gun | 7～8 | Airless Hose | |
| Primer Coat | ES Gun | 0.4～0.5 | FA Tube PA Tube |
|
| Surface Coat | ES Gun / Bell | 0.4～0.5 | FA Tube PA Tube |
|
| To Coat / Base & Clear | ES Gun / Bell | 0.4～0.5 | FA Tube PA Tube |
|
| Manual Spray Gun | Under Body Coat | Air Less Gun | 15～25 | Airless Hose |
| Stone Guard Coat | A-A Gun | 7～8 | Airless Hose | |
| Primer Coat | Air Spray Gun
E/S Spray Gun |
0.2～0.3 | PB Hose
FUB Hose |
|
| Primer Coat | HVLP Gun | 0.2～0.6 | PB Hose FUB Hose |
|
※表は横にスライドします
| Comparison data of manual spray hose | |||||
|---|---|---|---|---|---|
| Description (unit) | For solvent paints | For water paints | Test method | ||
| Tube | With reinforced yarns | ||||
| P Tube | PB Hose | FUB Hose | |||
| Hose size (mm) | 7×10 | 6.5×10 | 7×10 | ||
| Immersion test
<Immersion solvents: solvent thinner> |
+22%（△） | +26%（△） | +35%（△） | Togawa method: The hose (25mm) is soaked
in an immersion solvent for 20 days and the fluctuation of weight is measured. |
|
| Amount of deflection (mm) | 49（◯） | 54（◯） | 41（◯） | Togawa method: A load weight of 100g is applied
to the edge of a 150mm tube, and the amount of deflection is measured. |
|
| Checking of water
paint appropriateness A water paint base is filled in the hose, which is left for 20 days |
Condition of
paint |
The paint is somewhat sticky(△) | The paint is somewhat sticky(△) | The paint is
watery(◎) |
After leaving the hose for 20 days, the degree of
removability by natural force is compared. |
| Condition of
inner hose |
A few residual paints（△） | A few residual paints(△) | No residual paints(◯) | After removing the residual paints, a water thinner
(2 cc) is poured for two times, and the inner part is checked. |
|
