Painting Hose

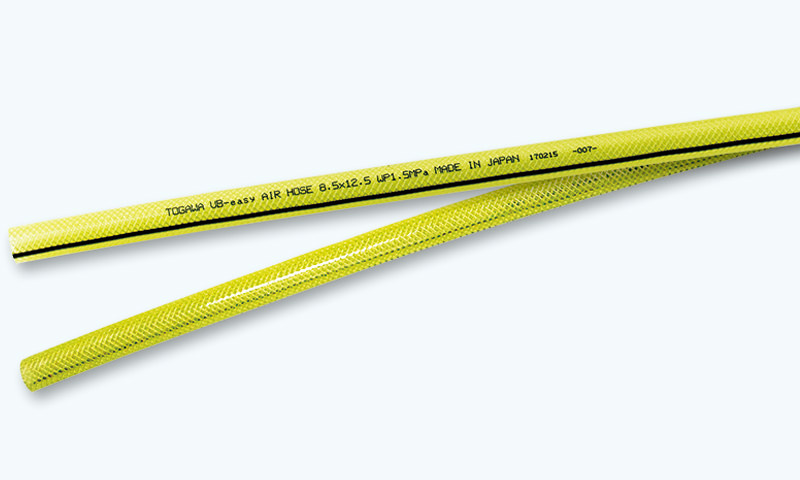

UB-easy Air Hose
A versatile conductive air hose is now available!
- Material
- Polyurethane product
- Usage
- Conductive air hose for painting
- Features
- Just tighten the metal fittings! No need to bare ground wire.
- Fluids
-
Air

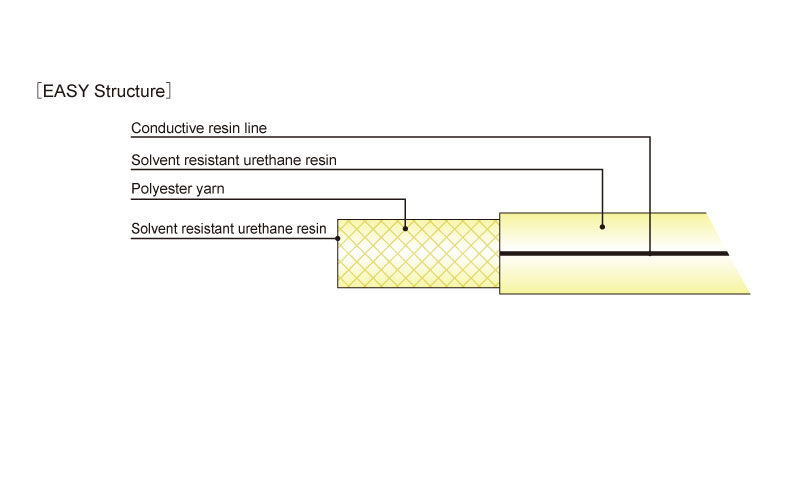

●As a conductive sleeve is applied around the outer layer, the grounding can be completed just by tightening the metalic joint (when the resistance value is 9×106 Ω or less, and the whole length is 15m or less).
Specifications:Working temperature limit: Between -5℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| UB-6510 | 6.5 | 10.0 | 100 | 1.5 | 35 | 5.4 |
| UB-6512 | 8.5 | 12.5 | 100 | 1.5 | 45 | 8.3 |
