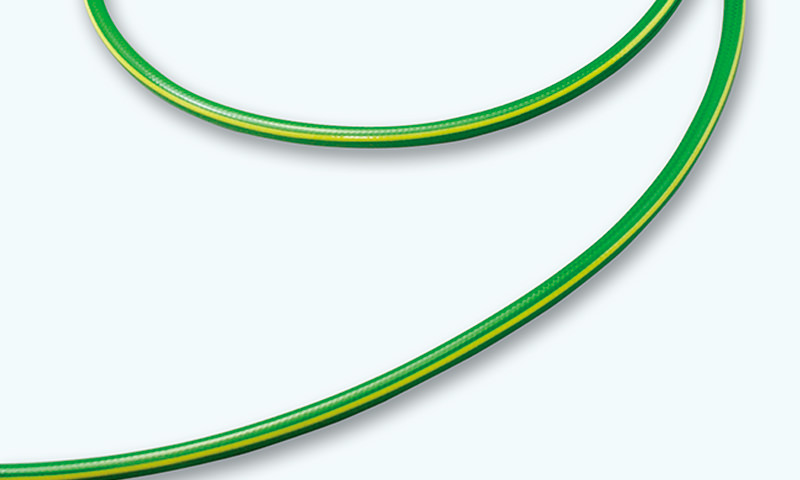

Conductive Air Hose
A conductive material is used for inner layer and the grounding can be completed just by connecting a metallic joint.
- Material
- Polyurethane product
- Usage
- For antistatic piping of painting
- Features
- Stripping off the ground wire is not necessary, which improves the workability.
A reliable grounding can be achieved. - Fluids
-
Air
Specifications:Working temperature limit: Between -20℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| SEH-6 | 6.5 | 10.0 | 100 | 1.5 | 35 | 5.7 |
| SEH-8 | 8.5 | 12.5 | 100 | 1.5 | 45 | 8.4 |
Electric resistance value (Ω)
| Nominal designation | Length of hose(m) 10m | Length of hose(m) 20m |
| SEH-6 | 1.0×105 | 2.0×105 |
| SEH-8 | 1.0×105 | 1.5×105 |
*1. Purpose: The values of electric resistance of conductive air hoses, 6.5 x 1B x 10 and 8.5 x 1B x 12.5 in 10m and 20m, are measured.
*2. Test method: A joint (brass) is attached to the conductive air hoses, SE-H6 and SE-H8, and the electric resistance values between the hoses are measured.
